工程机械RH132 波浪形吸排水管
RH132 波浪形吸排水管
波浪形吸排水管
应用范围: 硬壁，波浪型抽水及排水管，用于无腐蚀性液体，或 有机液体肥料；适用于农业灌溉及工业油罐运输车。耐泥水，耐 污水
温度范围: -30°C（-22°F）到 +70°C（+158°F）

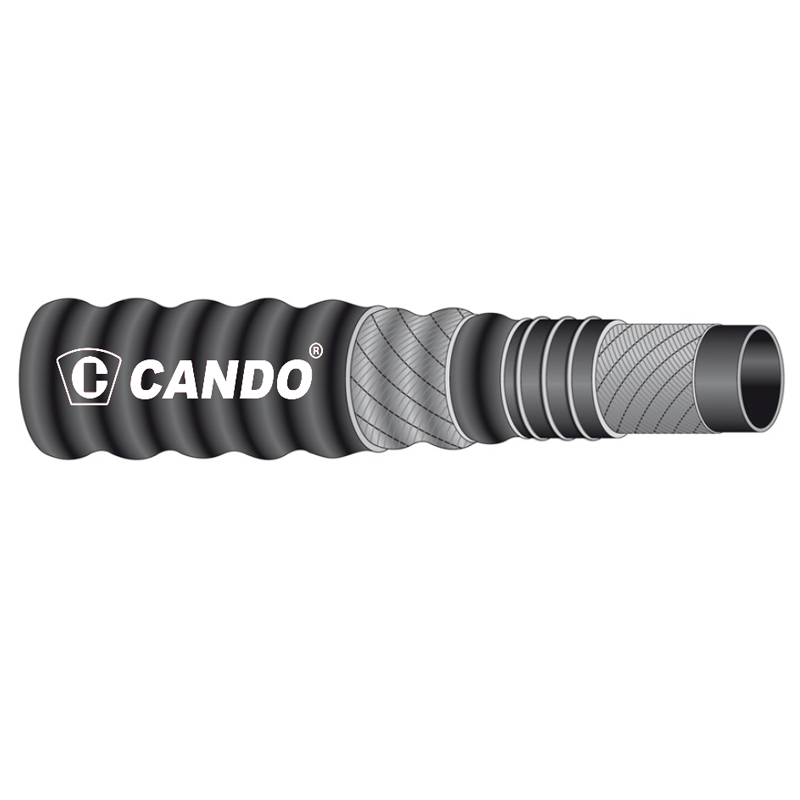

软管结构
内层: 黑色，光滑，合成橡胶，耐泥水，耐污水
加强层: 高强度合成线绳及环绕钢丝加强
外层: 黑色，波浪型，合成橡胶，耐侵蚀，耐氧化，耐老化
可选择项: 1. 不同口径2. 各种工作压力
Water suction and discharge hose
Application: hardwall, corrugated hose for suction and discharge of water, non corrosive fluids, or natural liquid fertilizers; suitable for agricultural and industrial applications, for overhead irrigation systems or for tank truck use.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
Construction
Tube: black, smooth, synthetic rubber, resistant to mud or sewage.
Reinforcement: high strength synthetic cord and helix wire.
Cover: black, corrugated (wrapped finish), synthetic rubber, weathering, ozone and ageing resistant.
Also available upon request: 1.Different diameters 2.Different working pressures.
- 产品详情
| 产品型号 | 内径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 真空 | 长度 | |
| code | inside diameter | working pressure | burst pressure | weight nominal | bending radius | vacuum | length | |
| RH132 | (in) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (bar) | (m) |
| RH132-16 | 1 | 25 | 3 | 9 | 0.61 | 80 | 0.8 | 60 |
| RH132-24 | 1-1/2 | 38 | 3 | 9 | 1.00 | 125 | 0.8 | 60 |
| RH132-32 | 2 | 51 | 3 | 9 | 1.3 | 175 | 0.8 | 60 |
| RH132-40 | 2-1/2 | 63.5 | 3 | 9 | 1.72 | 225 | 0.8 | 60 |
| RH132-48 | 3 | 76 | 3 | 9 | 2.03 | 275 | 0.8 | 60 |
| RH132-56 | 3-1/2 | 90 | 3 | 9 | 2.94 | 290 | 0.8 | 60 |
| RH132-64 | 4 | 102 | 3 | 9 | 3.24 | 400 | 0.7 | 60 |
| RH132-80 | 5 | 127 | 3 | 9 | 4.68 | 530 | 0.7 | 60 |
| RH132-96 | 6 | 152 | 3 | 9 | 6.28 | 690 | 0.7 | 60 |
| RH132-128 | 8 | 203 | 3 | 9 | 9.47 | 1010 | 0.7 | 60 |
| RH132-160 | 10 | 254 | 3 | 9 | 11.73 | 1370 | 0.7 | 12 |
