RH206 炉门冷却吸排水管

RH206 炉门冷却吸排水管

炉门冷却吸排水管
应用范围: 硬壁,用于输送炉门冷却水,具有玻璃纤维外层,可靠近 热源工作,适用于钢铁厂,玻璃厂和所有要求耐热辐射和灼热金 属火花喷溅的操作中
温度范围: -40°C(-40°F)到 +70°C(+158°F)

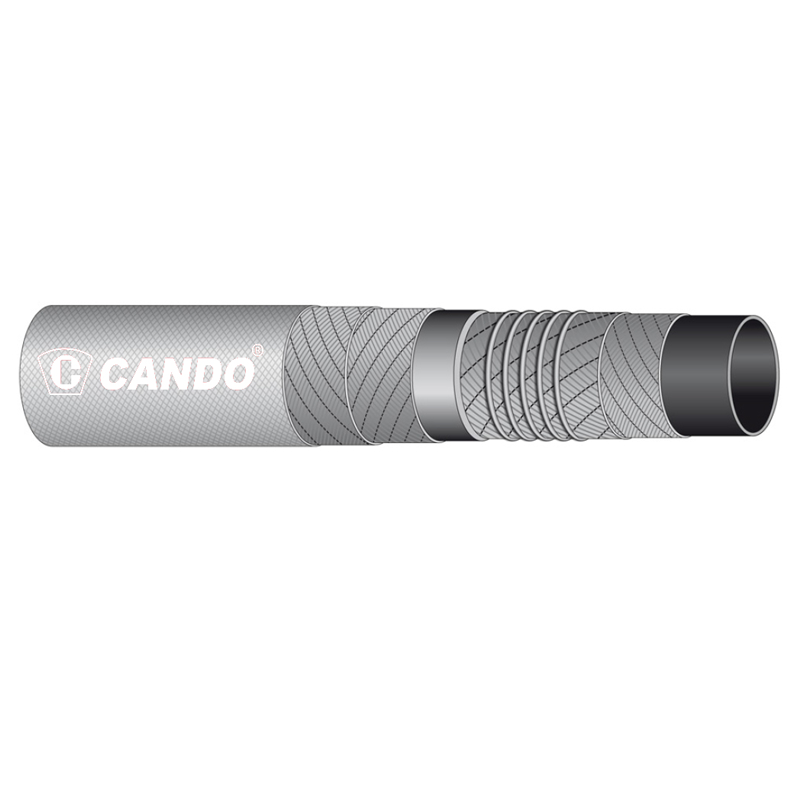

软管结构
内层: 黑色,光滑,合成橡胶
加强层: 高强度合成线绳及环绕钢丝加强
外层: 合成橡胶,外覆盖玻璃纤维层,硫化,耐热。玻璃纤维外 层可耐高温到+530°C(+986°F)
可选择项: 1. 不同口径 2. 各种工作压力 3.Essen LL/insulating 绝缘性电阻≥1x108Ω/m 4. Essen LL/insulating/CR 电绝缘性,用CR 橡胶外层,符合ASTM C 542 标准

Cooling water suction discharge hose with fibre glass cover
Application: hardwall hose for suction discharge of cooling water in steel mills, foundries, glassworks, in all cases where a rubber hose is working close to sources of heat. Resistant against splashes of white hot metal.
Temperature: from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord helix wire.
Cover: covered with fibre glass, vulcanized, heat resistant.
The fibre glass cover resists radiant heat up to +530°C (+986°F).
Also available upon request: 1.Different diameters 2.Different working pressures 3.Essen LL/insulating, with isolating tube compound electrical resistance ≥1x108 Ω/m. 4.Essen LL/insulating/CR electrically isolating, with further CR rubber cover with fire resistant characteristics according to ASTM C 542.

  • 产品详情
产品型号 内径  外径 工作压力 爆破压力 重量 弯曲半径 真空  长度
code inside diameter      outside diameter working pressure burst pressure weight nominal bending radius vacuum length
RH206 (in) (mm) (mm) (bar) (bar) (kg/m) (mm) (bar) (m)
RH206-08 15/32 12 22.5 10 30 0.45 85 0.9 120
RH206-12 3/4 19 30.5 10 30 0.73 95 0.9 120
RH206-16 1 25 36.5 10 30 0.89 115 0.9 120
RH206-20 2-1/4 32 43 10 30 1.05 150 0.9 120
RH206-24 1-1/2 38 50.5 10 30 1.45 180 0.9 120
RH206-32 2 51 63.5 10 30 1.91 245 0.9 120
RH206-41 2-7/8 65 78.5 10 30 2.70 315 0.9 120
RH206-48 3 76 91.5 10 30 3.52 375 0.9 120
RH206-64 4 102 119.5 10 30 5.28 530 0.9 120
