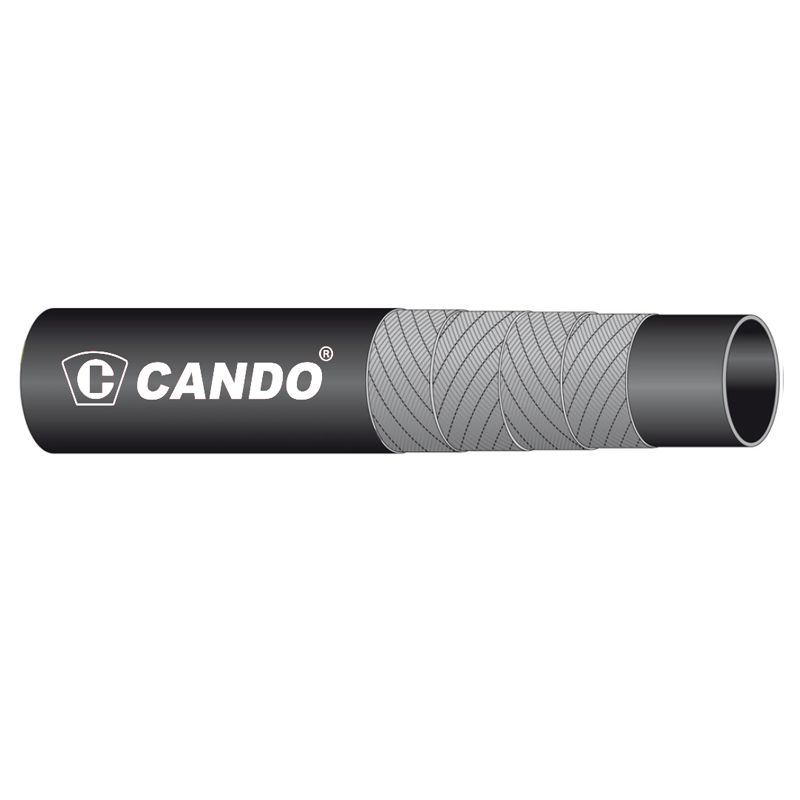

RH301 消防用管
RH301 消防用管
消防用管
质量标准: 外胶符合 ASTM C-542 防火标准
应用范围: 软壁软管,结实柔韧,用于安装在消防车卷轴上的增压软管,输送消防水或灭火液体
温度范围: -40°C(-40°F)到 +70°C(+158°F)
软管结构
内层: 黑色,光滑,合成橡胶
加强层: 高强度合成线绳
外层: 黑色,光滑,CR 防火橡胶,耐油污,耐侵蚀,耐磨
可选择项: 1. 不同口径
Booster hose for fire fighting fluids
Standards: flame retardant cover compound according to ASTM C-542.
Application: a robust and flexible softwall reel booster hose with flame retardant rubber cover as fitted on fire fighting trucks for the delivery of water and extinguishing fluids.
Temperature: from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish), CR flame retardant rubber. Resistant to oils, weathering and abrasion.
Also available upon request: 1.Different diameters.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | length | |
RH301 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (m) |
RH301-06 | 25/64 | 10 | 18 | 40 | 120 | 0.21 | 120 |
RH301-08 | 1/2 | 13 | 21 | 40 | 120 | 0.27 | 120 |
RH301-12 | 3/4 | 19 | 30 | 40 | 120 | 0.53 | 120 |
RH301-16 | 1 | 25 | 37 | 40 | 120 | 0.48 | 120 |
