RH304 消防用管
RH304 消防用管
消防用管
质量标准: BS 3169/86 class A, type 2
应用范围: 软壁软管,结实柔韧,用于安装在消防车卷轴上的增压软管,输送消防水或灭火液体
温度范围: -40°C(-40°F)到 +70°C(+158°F)
软管结构
内层: 黑色,光滑,SBR 橡胶,耐化学产品及灭火泡沫
加强层: 高强度合成线绳
外层: 黑色,光滑,EPDM 橡胶,耐侵蚀,耐磨
可选择项: 1. 不同口径
Booster hose for fire fighting fluids
Standards: BS 3169/86 class A, type 2.
Application: a robust and flexible softwall reel booster hose as fitted on fire fighting trucks, for the delivery of water and extinguishing fluids.
Temperature: from -40°C (-40°F) to +70°C (+158°F).

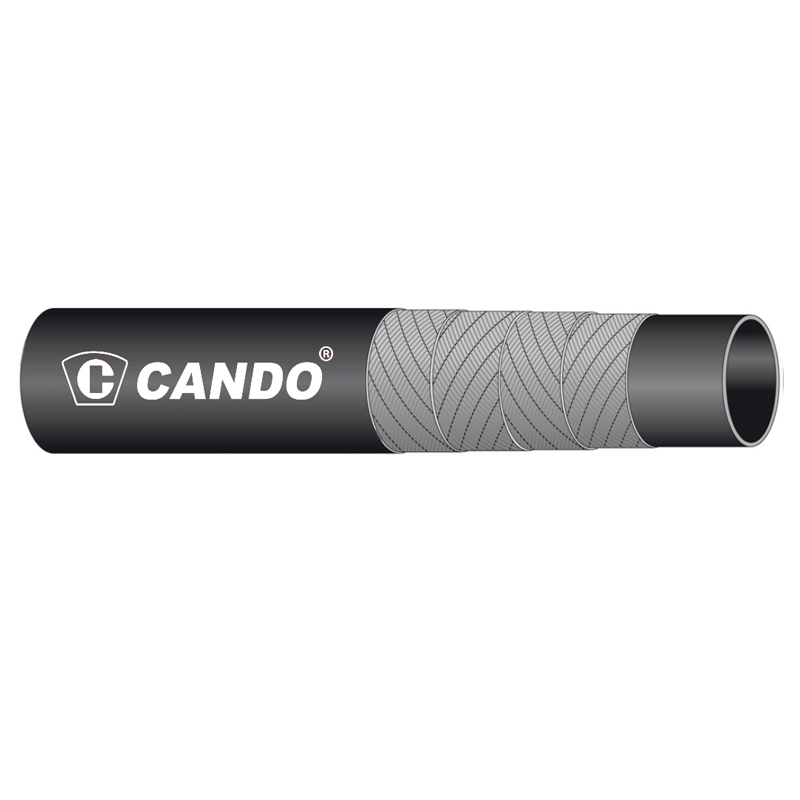

Construction
Tube: black, smooth, SBR rubber, resistant to chemical products and fire extinguishing foams.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) EPDM rubber, weathering and abrasion resistant.
Also available upon request: 1.Different diameters.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | bending radius | length | |
RH304 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (m) |
RH304-12 | 3/4 | 19 | 32.5 | 40 | 120 | 0.64 | 150 | 120 |
RH304-16 | 1 | 25 | 38.5 | 40 | 120 | 0.78 | 150 | 120 |
