RH306 消防用管
RH306 消防用管
消防用管
质量标准: EN 1947:2014.
应用范围: 软壁软管,结实柔韧,用于安装在消防车卷轴上的增压软管,输送消防水或灭火液体
温度范围: -20°C(-4°F)到 +60°C(+140°F)
软管结构
内层: 黑色,光滑,EPDM 橡胶,耐化学品及灭火泡沫
加强层: 高强度合成线绳
外层: 黑色,光滑,EPDM 橡胶,耐侵蚀,耐磨
可选择项: 1. 不同口径 2. 不使用任何标准的EPDM 橡胶的 Chicago 管
Booster hose for fire fighting fluids
Standards: EN 1947:2014.
Application: a robust and flexible softwall reel booster hose as fitted on fire fighting trucks for the delivery of water and extinguishing fluids.
Temperature: from -20°C (-4°F) to +60°C (+140°F).

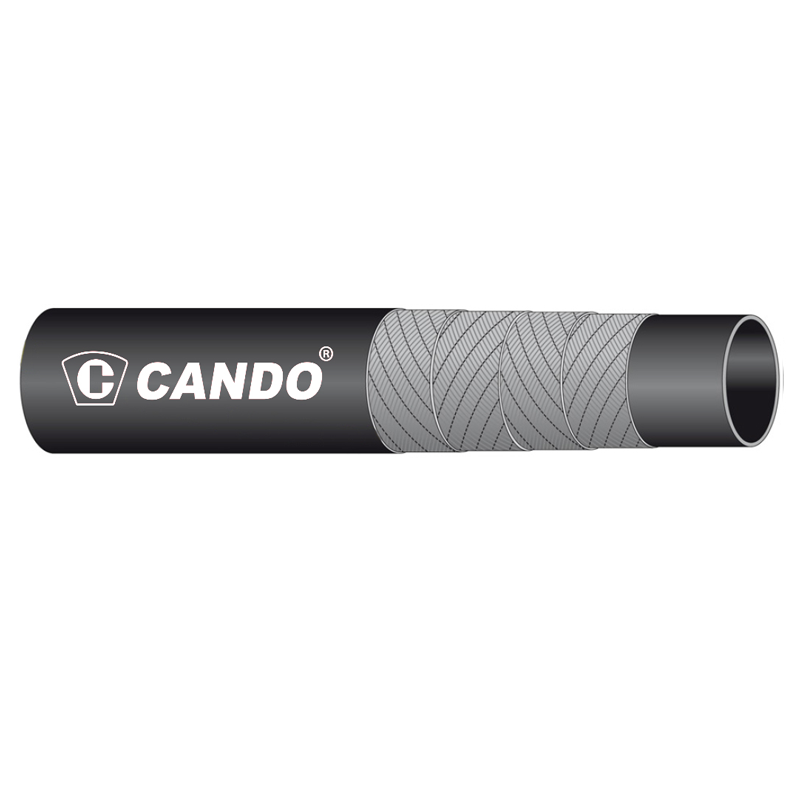

Construction
Tube: black, smooth, EPDM rubber, resistant to chemical products and fire extinguishing foams.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) EPDM rubber, weathering and abrasion resistant.
Also available upon request: 1.Different diameters 2.Chicago in EPDM rubber not according to a standard.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | bending radius | length | |
RH306 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (m) |
RH306-07 | 15/32 | 12 | 22 | 40 | 120 | 0.29 | 200 | 120 |
RH306-12 | 3/4 | 19 | 32.5 | 40 | 120 | 0.62 | 200 | 120 |
RH306-16 | 1 | 25 | 38.5 | 40 | 120 | 0.76 | 200 | 120 |
RH306-21 | 1-19/64 | 33 | 45.5 | 40 | 120 | 0.85 | 280 | 120 |
