工程机械RH406 柔性波浪型散热管
RH406 柔性波浪型散热管
柔性波浪型散热管
应用范围: 方格波浪型硬壁软管，用于冷却系统，传输热水和防冻液，用于汽车和工业机械引擎
温度范围: -40°C（-40°F）到 +100°C（+212°F）

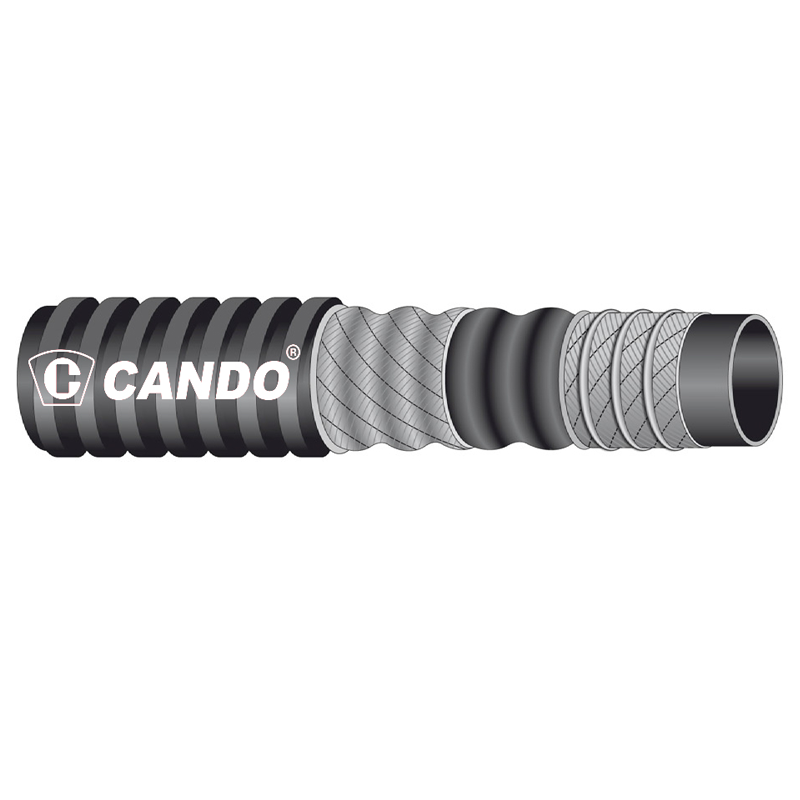

软管结构
内层: 黑色，光滑，EPDM 橡胶，耐热，耐防冻液
加强层: 高强度合成线绳和螺旋环绕钢丝
外层: 黑色，方格波浪型，EPDM 橡胶，耐热，耐老化
可选择项: 1.CR 橡胶 2. 不同口径
Flexible corrugated radiator hose
Application: square corrugated hose designed for conveying hot water and anti-freeze liquids in cooling systems of cars and industrial vehicle engines.
Temperature: from -40°C (-40°F) to +100°C (+212°F).
Construction
Tube: black, smooth, EPDM rubber resistant to heat and anti-freeze liquids.
Reinforcement: high strength synthetic cord and helix wire.
Cover: black, square corrugated, EPDM rubber. Resistant to heat and ageing.
Also available upon request: 1. Available with CR rubber. 2.Different diameters.
- 产品详情
| 产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 长度 | |
| code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | bending radius | length | |
| RH406 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (m) |
| RH406-09 | 19/32 | 15 | 23 | 4 | 12 | 0.37 | 53 | 60 |
| RH406-11 | 23/32 | 18 | 26 | 4 | 12 | 0.42 | 63 | 60 |
| RH406-13 | 25/32 | 20 | 28 | 4 | 12 | 0.41 | 70 | 60 |
| RH406-16 | 1 | 25 | 35 | 4 | 12 | 0.51 | 85 | 60 |
| RH406-18 | 1-7/64 | 28 | 38 | 4 | 12 | 0.54 | 95 | 60 |
| RH406-19 | 1-3/16 | 30 | 40 | 4 | 12 | 0.57 | 100 | 60 |
| RH406-20 | 1-1/4 | 32 | 42 | 4 | 12 | 0.67 | 102 | 60 |
| RH406-22 | 1-3/8 | 35 | 45 | 4 | 12 | 0.68 | 115 | 60 |
| RH406-24 | 1-1/2 | 38 | 48 | 4 | 12 | 0.73 | 125 | 60 |
| RH406-25 | 1-37/64 | 40 | 50 | 4 | 12 | 0.76 | 135 | 60 |
| RH406-26 | 1-27/32 | 42 | 52 | 4 | 12 | 0.80 | 138 | 60 |
| RH406-28 | 1-19/64 | 45 | 55 | 4 | 12 | 0.85 | 152 | 60 |
| RH406-32 | 2 | 51 | 61 | 4 | 12 | 0.95 | 167 | 60 |
| RH406-38 | 2-3/8 | 60 | 72 | 4 | 12 | 1.16 | 197 | 60 |
| RH406-41 | 2-9/16 | 65 | 77 | 4 | 12 | 1.25 | 213 | 60 |
