RH702 增强喷沙管
RH702 增强喷沙管
质量标准: 磨耗标准符合ISO 4649:40+/-5mm3, 超越ISO3861:2008 标准
应用范围: 极耐磨的软壁软管,用于喷砂作业,用于输送沙子或铸钢 碎石及其他研磨粒料。防静电合成橡胶
温度范围: -40°C (-40°F) 到 +80°C (+176°F)
软管结构
内层: 黑色,光滑,抗静电耐磨的SBR/NR 橡胶,有特殊的耐磨性 可确保较长的使用寿命
加强层: 高强力合成线绳
外层: 黑色,光滑(表面布纹),抗静电,合成橡胶,耐磨
可选择项: 1. 不同口径
Sand blast hose
Standards: abrasion loss of the tube according to ISO 4649: 40+/-5mm3. Exceeds the ISO 3861:2008.
Application: particularly abrasion resistant softwall hose, used for the delivery of higly abrasive media such as quarz sand, cast steel shot, corundum, glass. It is manufactured with antistatic rubber compound that prevents the risks of static electricity.
Temperature: from -40°C (-40°F) to +80°C (+176°F).

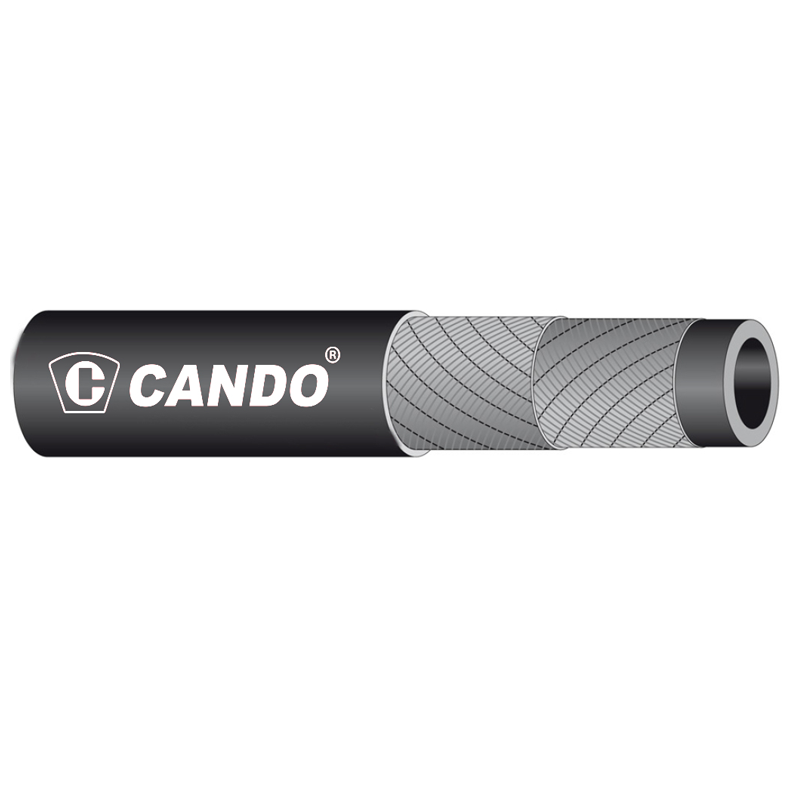

Construction
Tube: black, smooth, antistatic SBR/NR rubber, with special abrasion resistance that ensures a long service life.
Reinforcement: high strength synthetic cord.
Cover: black, smooth, (wrapped finish) antistatic synthetic rubber, abrasion resistant.
Also available upon request: 1.Different diameters.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | length | |
RH702 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (m) |
RH702-08 | 1/2 | 13 | 27 | 12 | 42 | 0.49 | 60 |
RH702-10 | 5/8 | 16 | 30 | 12 | 42 | 0.56 | 60 |
RH702-12 | 3/4 | 19 | 33 | 12 | 42 | 0.64 | 60 |
RH702-16 | 1 | 25 | 40 | 12 | 42 | 0.82 | 60 |
RH702-20 | 1-1/4 | 32 | 48 | 12 | 42 | 1.11 | 60 |
