工程机械RH704 喷涂管
RH704 喷涂管
喷涂管
质量标准: 磨耗标准符合ISO 4649: 70+/-5mm3
应用范围: 软壁软管，用于混凝土，水泥浆，石膏和灰泥的喷涂
温度范围: -40°C (-40°F) 到 +70°C (+158°F）

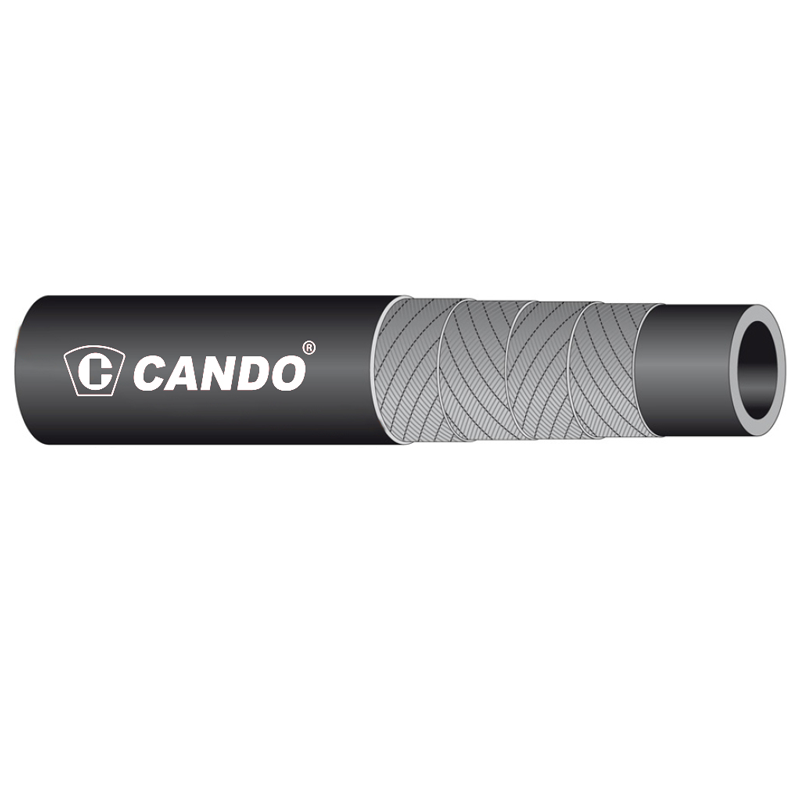

软管结构
内层: 黑色，光滑，抗静电耐磨的SBR/NR 橡胶
加强层: 高强力合成线绳
外层: 黑色，光滑（表面布纹），抗静电耐磨的SBR/NR 橡胶
可选择项: 1. 不同口径2. 不同外胶颜色3. 不同工作压力4. 可抽吸和输送Niagara LL
Plaster hose
Standards: abrasion loss of the tube according to ISO 4649: 70 +/- 5mm3.
Application: softwall hose, used for the spraying of concrete, plaster, and gypsum.
Temperature: from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black, smooth, antistatic SBR/NR rubber, abrasion resistant.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), antistatic SBR/NR rubber, abrasion resistant.
Also available upon request: 1.Different diameters 2.Cover in different colours 3.Different working pressures 4.Niagara LL for suction and discharge.
- 产品详情
| 产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 长度 | |
| code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | length | |
| RH 704 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (m) |
| RH 704-12 | 3/4 | 19 | 31 | 40 | 120 | 0.48 | 60 |
| RH 704-16 | 1 | 25 | 36.5 | 40 | 120 | 0.60 | 60 |
| RH 704-20 | 1-1/4 | 32 | 44 | 40 | 120 | 0.77 | 60 |
| RH 704-22 | 1-3/8 | 35 | 48 | 40 | 120 | 0.89 | 60 |
| RH 704-24 | 1-1/2 | 38 | 54 | 40 | 120 | 1.23 | 60 |
| RH 704-25 | 1-37/64 | 40 | 54 | 40 | 120 | 1.06 | 60 |
| RH 704-32 | 2 | 51 | 67 | 40 | 120 | 1.53 | 60 |
| RH 704-41 | 2-9/16 | 65 | 85 | 40 | 120 | 2.48 | 60 |
| RH 704-48 | 3 | 76 | 98 | 40 | 120 | 2.97 | 60 |
| RH 704-57 | 3-35/64 | 90 | 119.5 | 40 | 120 | 4.95 | 60 |
| RH 704-63 | 3-15/16 | 100 | 128 | 40 | 120 | 5.08 | 60 |
