RH706 干冰输送管
RH706 干冰输送管
干冰输送管
应用范围: 软壁胶管,用于干冰喷砂,应用于特定工业部门特殊喷砂 和清洁服务。非常适合严禁粉尘扩散的工矿
温度范围: -55°C (-67°F) 到 +130°C (+266°F)

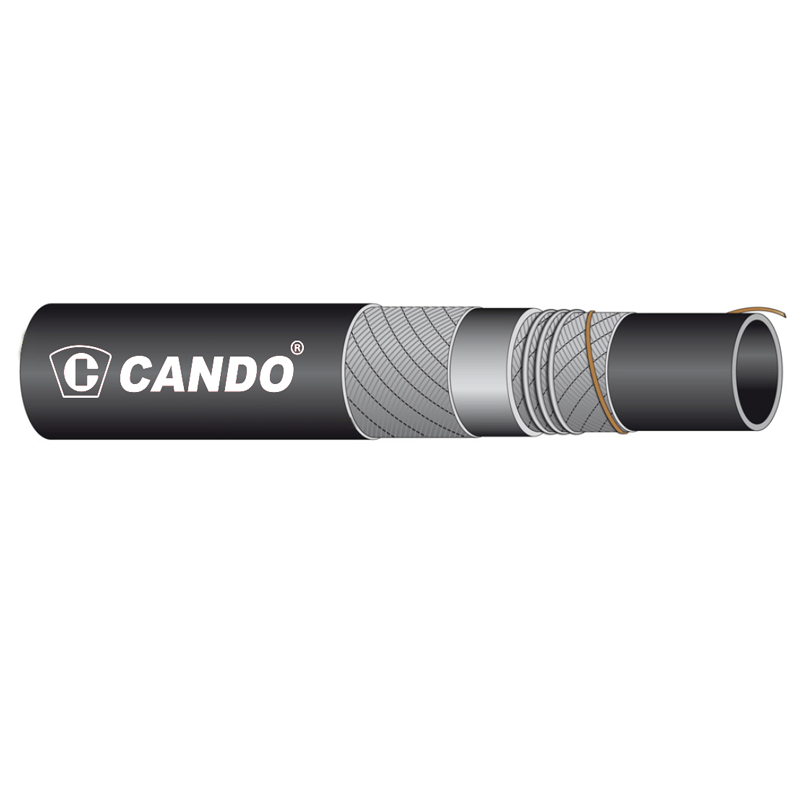

软管结构
内层: 黑色,光滑合成橡胶,耐磨,抗老化,防静电
加强层: 高强力合成线绳
外层: 黑色,光滑(表面布纹),防静电合成橡胶,耐磨,抗老化
可选择项: 1. 不同口径2. 不同工作压力
Sand blast with dry ice hose
Application: softwall hose for dry ice, used for particular sand blasting and cleaning services in specific industrial sectors. It is ideal for applications where the dust must remain contained.
Temperature: from -55°C (-67°F) to +130°C (+266°F).
Construction
Tube: black, smooth, antistatic synthetic rubber with excellent abrasion
resistance.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), antistatic synthetic rubber which is abrasion, weathering and ozone resistant.
Also available upon request: 1.Different diameters 2.Different working pressures.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | length | |
RH 706 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (m) |
RH 706-08 | 1/2 | 13 | 25 | 10 | 40 | 0.37 | 60 |
RH 706-10 | 5/8 | 16 | 28 | 10 | 40 | 0.43 | 60 |
RH 706-12 | 3/4 | 19 | 31 | 10 | 40 | 0.49 | 60 |
RH 706-16 | 1 | 25 | 37 | 10 | 40 | 0.60 | 60 |
