RH430 火车刹车管

RH430 火车刹车管

火车刹车管
质量标准: 管子符合: Specifica tecnica Trenitalia n° 373407. 橡胶符合:UNI CEI 11170-1-2-3, NF
F16-101, EN ISO 11925-2, DIN 5510-2.
应用范围: 软壁胶管，用作火车空气刹车系统中的柔性连接管，连接 机车与车辆之间制动系统中。防火并低毒低烟气排放。管卷：通 常供应带锥形端的使用长度。
温度范围: -30°C（-22°F）到 +80°C（+176°F）
软管结构
内层: 黑色，光滑的合成橡胶。
加强层: 高强力合成线绳。
外层: 黑色， 光滑( 表面布纹) 合成橡胶，抗老化、耐臭氧和耐油。
可选择项: 1. 不同口径 2. 根据BS 3682:94 标准生产3. 接头。

Rail brake hose
Standards: Hose: Specifica tecnica Trenitalia n° 373407. Rubber: UNI CEI 11170-1-2-3, NF F16-101, EN ISO 11925-2, DIN 5510-2.
Application: softwall hose designed as a flexible connection in air brake systems on rail carriages and locomotives. It is fire resistant with low toxicity and low smoke emission. Coils: supplied usually in application lengths with tapered ends.
Temperature: from -30°C (22°F) to +80°C (+176°F).

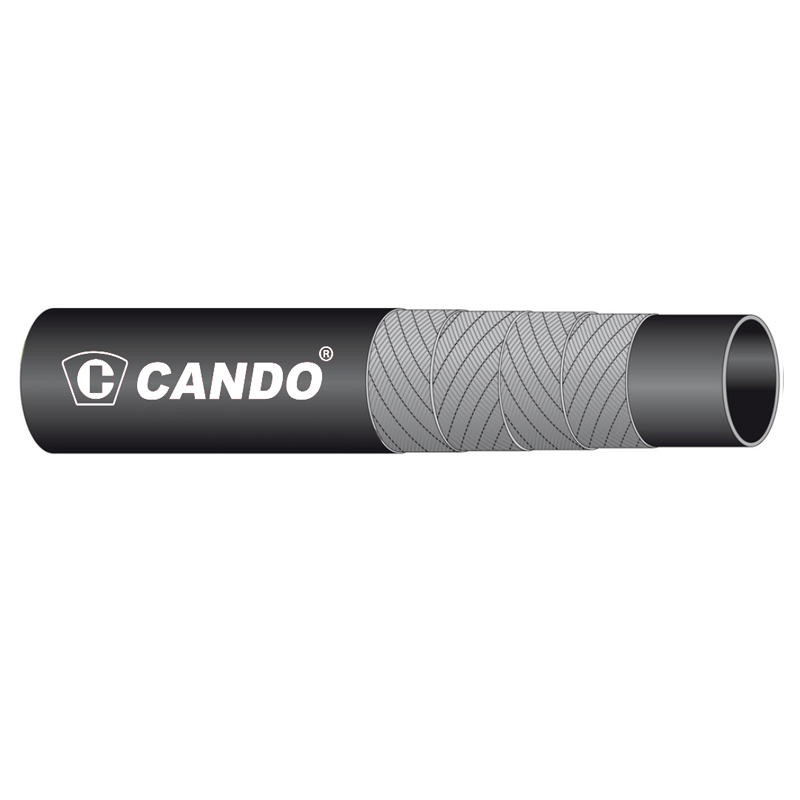

Construction
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), long lasting rubber, weathering, ozone, and oil resistant.
Also available upon request: 1.Different diameters. 2.In accordance to the standard BS 368 2:94, part 1. 3.Rail Couplings.
