RH822 C 型飞机加油管

RH822 C 型飞机加油管

C 型飞机加油管
质量标准: BS EN ISO 1825, API 1529, AS 2683, VG 95955, NFPA 407
应用范围: 软壁胶管，用于飞机地面加油，可卷起放在管架上，可输 送芳烃含量高达50% 的石油产品和JET A1 燃油。
温度范围: -25°C (-13°F) 到 +70°C (+158°F)。

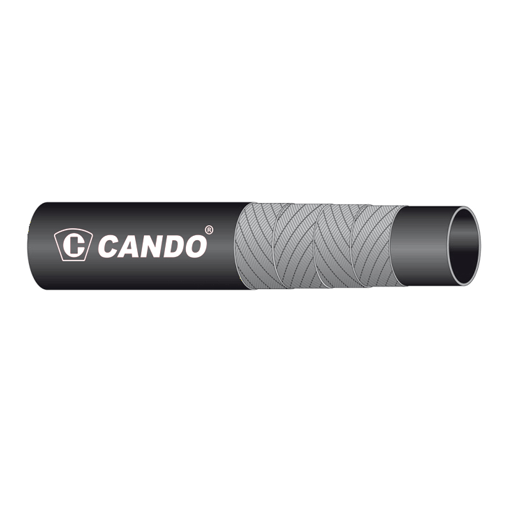

软管结构
内层: 挤出型，黑色，光滑，高品质NBR 橡胶。
加强层: 高强力合成线绳。
外层: 黑色，光滑，抗静电合成橡胶，耐气候、耐磨损、耐油迹。
电阻性: 导电
可选择项: 1. Avio Global B, 软壁导电的 2 荧光标记，夜间操作可见

Aircraft refuelling hose, type C
Stards: BS EN ISO 1825, API 1529, AS 2683, VG 95955, NFPA 407.
Application: softwall hose designed for the ground fuelling of aircrafts. The hose can be rolled up onto reels is suitable to convey petroleum products jet A1 fuel with aromatic content up to 50%.
Temperature: from -25°C (-13°F) to +70°C (+158°F).
Construction
Tube: extruded, black, smooth, NBR rubber.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped finish), antistatic synthetic rubber, resistant to weathering, abrasion traces of oil.
Electrical Resistance: electrically conductive.
Also available upon request: 1.Avio Global type B, softwall conductive. 2. Fluorescent marking, which allows the visibility during night operations.
