您现在的位置是:首页 >> 产品中心 >> 工业软管 >> 输油管/Oil >>RH826 F 型飞机加油管

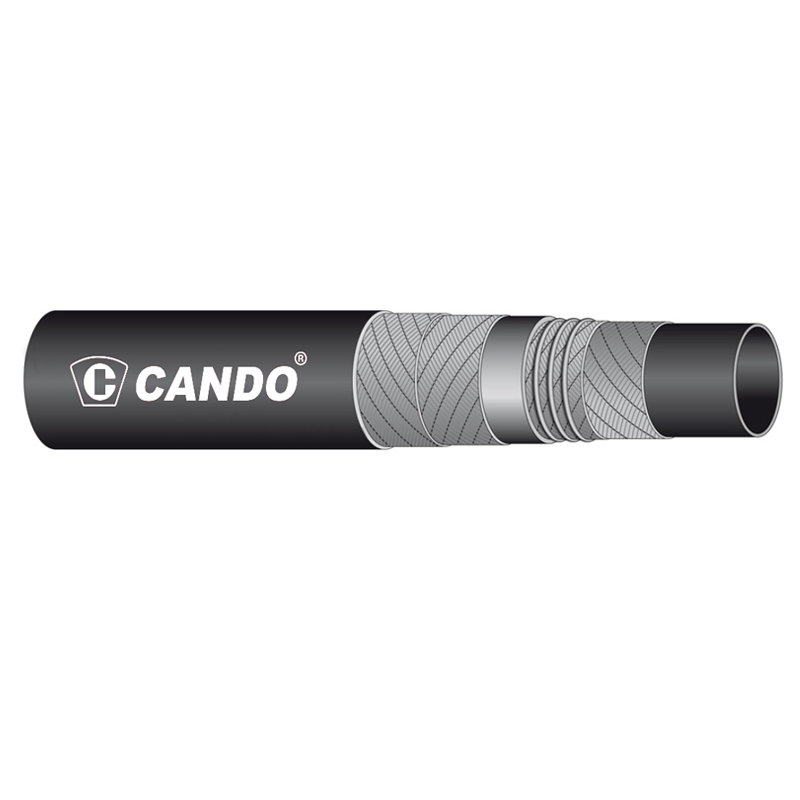

RH826 F 型飞机加油管

RH826 F 型飞机加油管

F 型飞机加油管
质量标准: BS EN ISO 1825, API 1529, AS 2683, VG 95955, NFPA407。
应用范围: 柔性软管,装有非金属螺旋丝加强,设计用于输油操作和 飞机的地面加油。软管可以卷起卷轴上,适于输送芳烃含量高达 50%的石油产品和JET A1 燃料。
温度范围: -25°C (-13°F) 到 +70°C (+158°F).
软管结构
内层: 挤出的,黑色,光滑,NBR
加强层: 高强力合成线及非金属螺旋骨架。
外层: 黑色, 光滑(表面布纹),抗静电的合成橡胶,耐磨损、耐 油迹,耐老化
电阻性: 导电的
可选择项: 1 荧光标记,允许在夜间作业时的可见性

Aircraft refuelling hose, type F
Standards: BS EN ISO 1825, API 1529, AS 2683, VG 95955, NFPA 407.
Application: flexible hose, incorporating a non-metallic helix reinforcement, designed for both discharge operations and for the ground fuelling of aircrafts. The hose can be rolled up onto reels and is suitable to convey petroleum products and jet A1 fuel with aromatic content up to 50%.
Temperature: from -25°C (-13°F) to +70°C (+158°F).
Construction
Tube: extruded, black, smooth, NBR rubber.
Reinforcement: high strength synthetic cord plus embedded non-metallic helix wire.
Cover: black, smooth (wrapped finish), antistatic synthetic rubber, resistant to weathering, abrasion and traces of oil.
Electrical Resistance: electrically conductive.
Also available upon request: 1. Fluorescent marking, which allows the visibility during night operations.

  • 产品详情
产品型号  内径  外径     工作压力 爆破压力 重量 弯曲半径 真空  长度
 code  inside diameter  outside diameter  working pressure burst pressure  weight nominal bending radius vacuum length
RH 826 (in) (mm) (mm) (bar) (bar) (kg/m) (mm) (bar) (m)
RH 826-24 1-1/2 38 53.5 20 80 1.52 450 0.65 60
RH 826-32 1-31/32 50 69 20 80 2.38 550 0.65 60
RH 826-40 2-1/2 63.5 83.5 20 80 3.07 600 0.65 60
