工程机械RH 830 液压油吸排管
RH 830 液压油吸排管
液压油吸排管
质量标准: 橡胶材料符合SAE J517, SAE 100 R4 型。
应用范围: 硬壁软管，适用于液压系统中吸送和输送( 除酯基油外) 的 液压油。
温度范围: -40°C (-40°F) 到 +100°C (+212°F)。

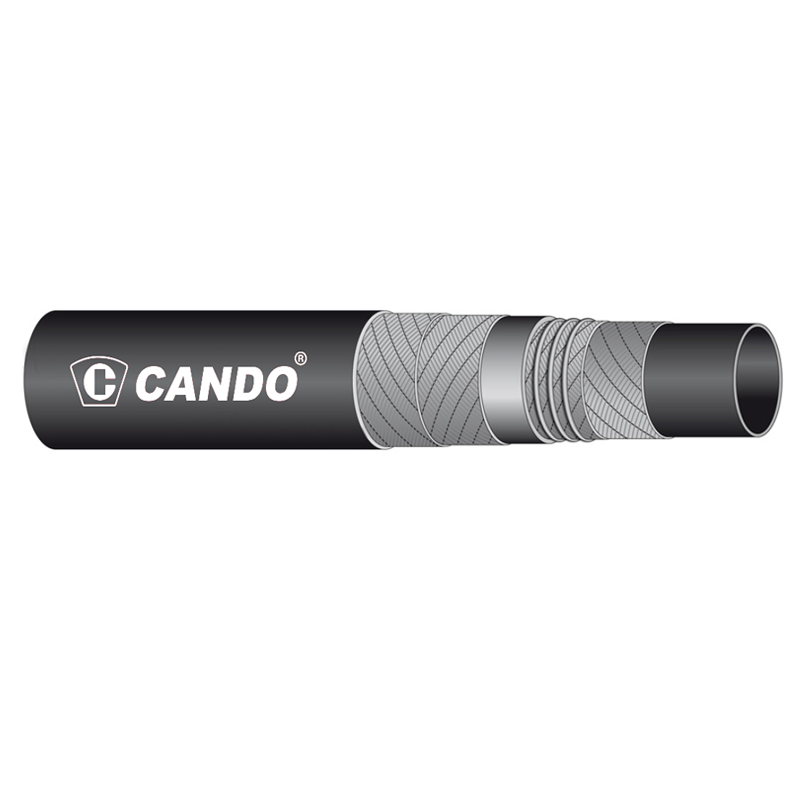

软管结构
内层: 黑色，光滑，耐油合成橡胶。
加强层: 高强力合成线绳螺旋钢丝加强。
外层: 黑色，光滑（表面布纹）合成橡胶，耐气候
可选择项: 1 不同口径
Hydraulic oil suction and delivery hose
Standards: SAE J517, type SAE 100 R4 for the rubber compounds.
Application: hardwall hose used for the suction and delivery of oil (except ester base) in hydraulic systems.
Temperature: from -40°C (-40°F) to +100°C (+212°F).
Construction
Tube: black, smooth, synthetic rubber, oil resistant.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering resistant.
Also available upon request: 1.Different diameters.
- 产品详情
| 产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 真空 | 长度 | |
| code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | bending radius | vacuum | length | |
| RH 830 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (bar) | (m) |
| RH 830-12 | 3/4 | 19 | 28 | 10 | 30 | 0.51 | 95 | 0.9 | 60 |
| RH 830-16 | 1 | 25 | 34.5 | 10 | 30 | 0.67 | 125 | 0.9 | 60 |
| RH 830-20 | 1-1/4 | 32 | 41.5 | 8 | 24 | 0.83 | 160 | 0.9 | 60 |
| RH 830-25 | 1-37/64 | 40 | 50 | 8 | 24 | 1.07 | 195 | 0.9 | 60 |
| RH 830-28 | 1-49/64 | 45 | 55 | 6 | 18 | 1.19 | 5 | 0.9 | 60 |
| RH 830-32 | 2 | 51 | 61 | 6 | 18 | 1.33 | 200 | 0.9 | 60 |
| RH 830-38 | 2-3/8 | 60 | 71.5 | 5 | 15 | 2.08 | 315 | 0.9 | 60 |
| RH 830-48 | 3 | 76 | 88 | 5 | 15 | 2.88 | 380 | 0.9 | 60 |
