RH552 化学品吸排管/EPDM
RH552 化学品吸排管/EPDM
化学品吸排管/EPDM 质量标准: EN 12115:11
应用范围: 硬壁胶管,广泛用于输送各种化工产品,特别适用于输送 工业水及用于水净化系统。不建议输送强氧化性酸、碱、醇类、醛类、酮类、热水和热空气。
温度范围: -40°C(- 40°F) 到 +100°C(+212°F),视介质而定。

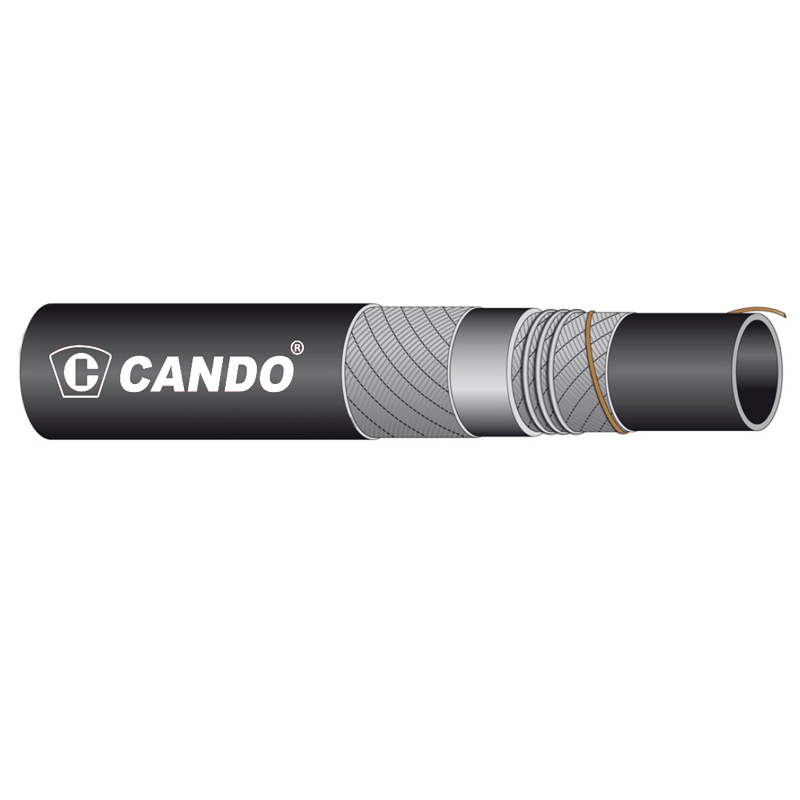

软管结构
内层: 黑色,光滑,EPDM 橡胶。化学品适应性请参照IVG 化学 物质表,当输送温度高于50℃请与我方联系。
加强层: 高强度合成线及螺旋环绕钢丝。
外层: 黑色,光滑( 表面布纹),EPDM 橡胶。耐化学物质,耐磨,
抗老化,耐臭氧。
电阻性: Ω/T, 导电。 长度等于或低于40米的电阻。
Suction and discharge of chemicals, EPDM quality Standards: EN 12115:11.
Application: hardwall hose designed to handle a wide range of chemical products, not strong oxidizing acids, bases, alcohols, aldehydes, ketones, hot water and hot air. It is specially recommended to convey industrial waters and for use in water purification systems.
Temperature: -40°C(- 40°F) +100°C(+212°F) depending on medium.
Construction
Tube: black, smooth, EPDM rubber. For temperature exceeding 50°C contact IVG.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: black, smooth (wrapped finish), EPDM rubber, resistant to chemical products, abrasion, weathering and ozone.
Electrical Resistance: Ω/T, electrically conductive hose. Electrical resistance for lengths equal or lower than 40m.
- 产品详情
产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 真空 | 长度 | |
code | inside diameter | outside diameter | working pressure | burst pressure | weight nominal | bending radius | vacuum | length | |
RH552 | (in) | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (bar) | (m) |
RH552-12 | 3/4 | 19 | 31.5 | 16 | 64 | 0.66 | 115 | 0.9 | 60 |
RH552-16 | 1 | 25 | 38 | 16 | 64 | 0.88 | 150 | 0.9 | 60 |
RH552-20 | 1-1/4 | 32 | 45 | 16 | 64 | 1.07 | 175 | 0.9 | 60 |
RH552-24 | 1-1/2 | 38 | 52 | 16 | 64 | 1.38 | 225 | 0.9 | 60 |
RH552-32 | 2 | 51 | 66 | 16 | 64 | 1.88 | 275 | 0.9 | 60 |
RH552-40 | 2-1/2 | 63.5 | 78 | 16 | 64 | 2.42 | 340 | 0.9 | 60 |
RH552-48 | 2-61/64 | 75 | 90.5 | 16 | 64 | 2.93 | 350 | 0.8 | 60 |
RH552-64 | 4 | 102 | 118 | 16 | 64 | 4.24 | 450 | 0.8 | 60 |
