RH572 食品级导电特氟龙化学管/FEP

RH572 食品级导电特氟龙化学管/FEP

食品级导电特氟龙化学管/FEP
质量标准: EN 12115:11. 内管 USP Class VI 及 FDA tit.21 it.177.1550.不含塑化剂。
应用范围: 硬壁胶管,FEP内层(四氟乙烯和六氟丙烯聚合物),适用 于几乎全部化学产品(能在IVG化学物质表找到)的输送,可在 150℃度高温下在现消毒(CIP)。
与制造商协商后,最终用户负责确保该软管或软管总成件的内层 是适合于输送的化学品和使用的温度。
温度范围: -40°C( -40°F) 到+150°C( +302°F),视介质而定。

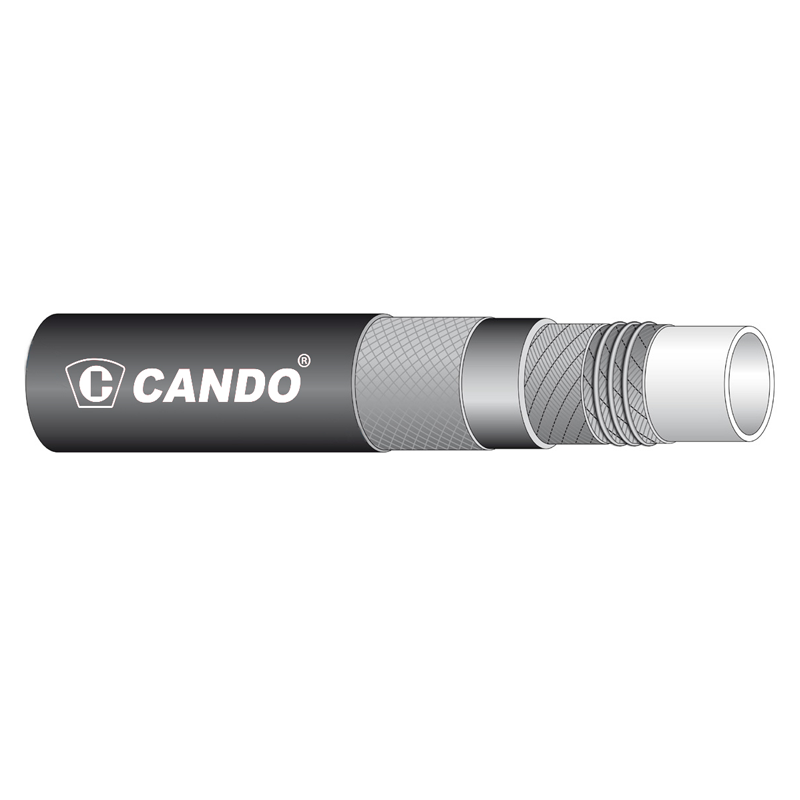

软管结构
内层: 清洁、光亮、特别光滑、食品级和耐高温的FEP材料 (Teflon),化学品适应性请参照IVG化学物质表,当输送温度高 于50°C请与我方联系。
加强层: 高强力合成线绳和螺旋钢丝。
外层: 黑色、光滑(表面布纹)、EPDM橡胶,耐化学品、耐磨、耐臭氧、抗老化,导电。
电阻性: Ω型。长度等于或低于40米的电阻。

Hose for chemicals and solvents, FEP tube
Standards: EN 12115:11. Tube: USP Class VI. Reg. EC 1935/04 and EC 2023/06. Phthalates free. FDA tit.21 item 177.1550 foods.
Application: hardwall hose with FEP tube (polymer of tetrafluoroethylene and hexafluoropropylene), suitable to convey almost all chemical products, as found in the IVG chemical resistance chart. Designed to be sterilized at 150°C (+302°F) with standard CIP.
After consultation with the manufacturer, the end user is responsible for making sure that the lining of the hose or hose assemblies is suitable to handle the chemicals conveyed and the temperature utilized.
Temperature: -40°C(- 40°F) +150°C(+302°F) depending on medium.
Construction
Tube: FEP clear, specular, particularly smooth, food quality and with exceptional thermal quality. Chemical resistance according to IVG chemical resistance chart. For temperature exceeding 50°C contact IVG.
Reinforcement: high strength synthetic cord, steel helix wire.
Cover: black, smooth (wrapped finish), conductive EPDM rubber, resistant to chemicals, abrasion, ozone and weathering.
Electrical Resistance: type Ω. Electrical resistance guaranteed for lengths equal or lower than 40m.

  • 产品详情
产品型号  内径  外径     工作压力 爆破压力 重量 弯曲半径 真空  长度
 code  inside diameter  outside diameter  working pressure burst pressure  weight nominal bending radius vacuum length
RH572 (in) (mm) (mm) (bar) (bar) (kg/m) (mm) (bar) (m)
RH572-12 3/4 19 31.5 16 64 0.69 90 0.9 40
RH57216 1 25 37.5 16 64 0.95 120 0.9 40
RH572-20 1-1/4 32 45 16 64 1.17 150 0.9 40
RH572-24 1-1/2 38 51.5 16 64 1.41 180 0.9 40
RH572-32 2 51 65.5 16 64 2.03 250 0.9 40
RH572-40 2-1/2 63.5 18.5 16 64 2.57 320 0.9 40
RH572-48 3 76 91 16 64 3.10 400 0.9 40
