PH48C 生物材料管
PH48C 生物材料管
颜色: 透明
温度: -10°C + 60 C
应用:
液态食物传输的理想方案,如:饮料,果汁,水,葡萄酒及酒精浓度高达20%的酒精饮料.
技术特性:

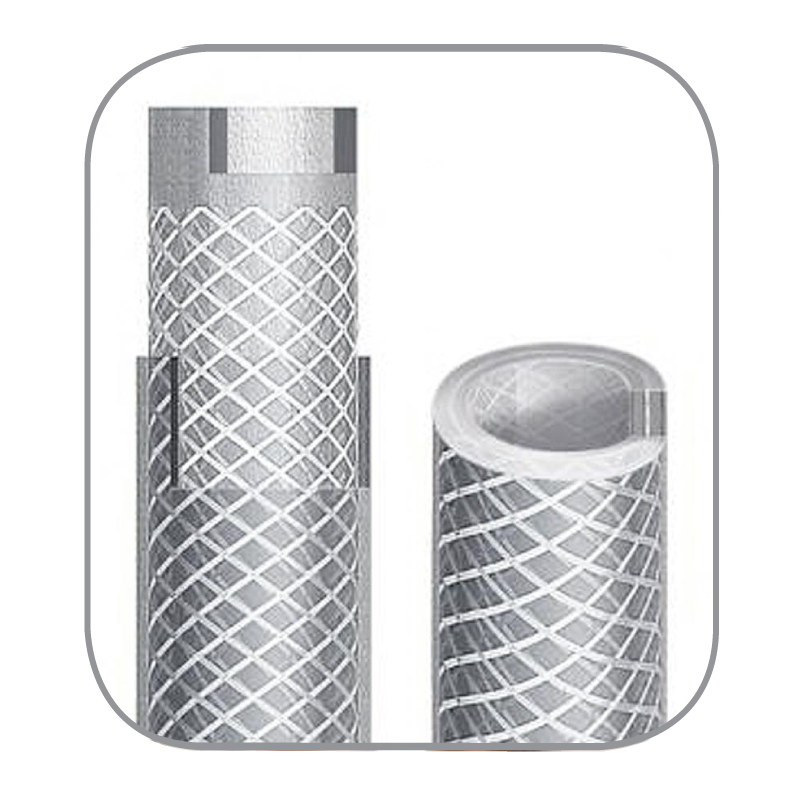

管壁以高强度聚酯纤维网线加强的软管内、外壁完全光滑,优化流动性。
采用生物资源制造的生物乙烯软管,符合欧盟E J及美国FDA食品级标准。
抗细菌,抗水解,耐候性强,耐臭氧,耐日照,耐多种化学品。 不含卤素
不含邻苯二甲酸盐
标准:
符合欧盟EU10/2011,美国FDA食品级认证;符
合ROHS 2011/65 /EU环保指令,及REACH Regulation(1907/2006)规定。
coloure:Transparent
Temperature range :-10℃+60℃
Applications:
ldeal solution to delivery of food liquids: beverages,fruit juices,water,wine and spirits with alcohol concentration up to 20%.
Technical features:
Flexible hose reinforced with a high tenacity polyester yarn.
Extremely smooth inside and outside to ensure the optimization Offlow.
Produced with BiovinylTM; 1ST bio-based vinyl compound,obtainedfrom natural sourçes,food grade according to EU and FDA regu-lations.
Resistant to microbes,hydrolysis, weather conditions,ozone,ageingand UV rays and most chemicals. Halogens free. Phthalates free.
Standards:
Food grade according to EU 10/2011Regulation and to FDA CFR21,RoHS 2011/65/EU,REACH Regulation (190712006).
- 产品详情
代码 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 长度 | 体积 |
code | outside | outside diameter | working pressure | burst pressure | weight nominal | bending radius | length | volume |
PH48C | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (m) | (m3) |
PH48C006 | 6 | 12 | 21 | 63 | 105 | 30 | 100 | 0.025 |
PH48C008 | 8 | 14 | 23 | 69 | 125 | 40 | 100 | 0.032 |
PH48C010 | 10 | 16 | 16 | 48 | 150 | 50 | 100 | 0.041 |
PH48C012 | 12 | 18 | 12 | 36 | 175 | 60 | 100 | 0.050 |
PH48C013 | 13 | 19 | 11 | 33 | 182 | 70 | 100 | 0.058 |
PH48C016 | 16 | 22 | 10 | 30 | 220 | 80 | 50 | 0.041 |
PH48C019 | 19 | 26 | 9 | 27 | 300 | 100 | 50 | 0.075 |
PH48C025 | 25 | 33 | 8 | 24 | 445 | 130 | 50 | 0.107 |
PH48C030 | 30 | 38 | 6 | 18 | 520 | 150 | 50 | 0.135 |
PH48C032 | 32 | 42 | 5 | 15 | 705 | 160 | 50 | 0.146 |
PH48C038 | 38 | 48 | 4 | 12 | 820 | 190 | 50 | 0.271 |
PH48C040 | 40 | 50 | 4 | 12 | 855 | 200 | 50 | 0.303 |
PH48C050 | 50 | 62 | 4 | 12 | 1280 | 250 | 50 | 0.391 |
