PH64D 食品/化妆品/制药
PH64D 食品/化妆品/制药
颜色:透明
温度:30℃+ 90℃(短时间可耐+ 125℃)
应用:
可广泛应用于多种领域,如传输:食品、化妆品、保健品药品酒精浓度高达20%的酒类,饮料、果汁:粉末,颗粒,干性食物,药丸、药片,颜料 面霜,香皂,香料等,也适用于含油和高脂肪的食物,但不适用于牛奶或奶制品。
技术特性:

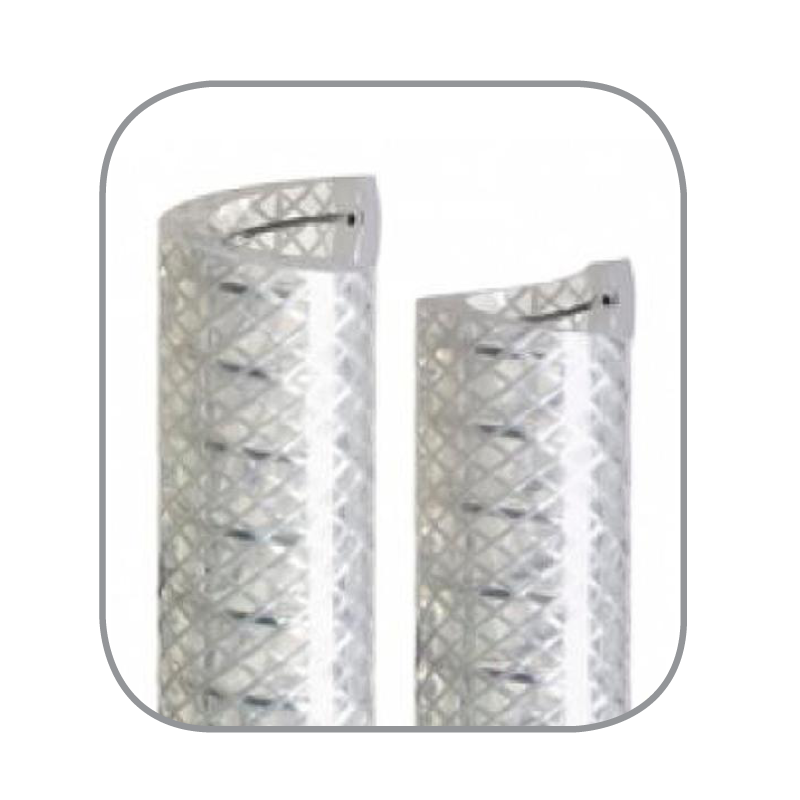

聚醚型聚氨酯材质,特别柔韧,不锈钢钢筋螺旋及高强度聚酯纤维网加强。
内、外壁完全光滑,提高流量,降低阻塞的可能性。低孔隙度减少渗透问题,也便于清洁。
最大程度的保留了物料的原汁原味及原有属性。
机械性能卓越,极为柔韧而且质轻、耐多数化学品,是传输酸性和碱性溶液的理想解决方案。耐老化、抗水解、抗紫外线、抗菌。
不含邻苯二甲酸盐。
不含卤素。
软管两端钢丝接地可排静电。
标准:
符合EU Regulation 10/2011食品级标准:符合FDA (Title21CFR177.2600,含水食物)标准,符合USP VI药品级规定,符合TRBS 2153规定,符合ROHS 2011/65/EU指令,REACH Regulation(1900/2006)标准。
Colour:Transparent
Temperature range:-30℃+90℃(intermittent to+ 125℃)
Applications:
Versatile sucion and delivery hose for food cosmetic, health and bodycare,pharmaceutical substances; spirits with alcoholic content up to20%, beverages,fruit juices,powders,granules, food,pills,tablets,pigments,creams,soaps,amsessencesA foroilandattyy foods.NOsuitableik anddairyproducts
Technical features:
Highly flexible and clear Ethe-based Polyurethane reinforced withsainless steel spiral and high tenacity polyester yam.
Completely smooth inside and outside to enhance the flow and detectpossible blockages.
The low porosity reduces permeation problems and allows easy cle-aning process.
Highly neutral in taste and odor,it preseves the organoleptic properties
of the media.
Excellent mechanical properies: highly flexible and low weigh,resistantto most chemicals,acids and alkaline solutions,ageing,hydrolysis,UVRays,bacteria and microbes proliferation
Phthalates free.
Halogens free.
The hose becomes electrcally-condctive by grounding the spira (bothends).
Standards:
Food grade according to the EU Regulation 10/2011,FDA regula-tions (Title 21 CFR 177 2600, aqueous foods),USP CLASSVI,TRB s2153,RoHS 2011/65/EU Directive REACH Regulation (19072006).
- 产品详情
代码 | 内径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 真空 | 长度 | 体积 |
code | inside | working pressure | burst pressure | weight nominal | bending radius | vacuum | length | volume |
PH64D | (mm) | (bar) | (bar) | (kg/m) | (mm) | (mH20) | (m) | (m3) |
PH64D013 | 13 | 19 | 57 | 356 | 65 | 10 | 60 | 0.085 |
PH64D020 | 20 | 17 | 51 | 590 | 100 | 10 | 60 | 0.127 |
PH64D025 | 25 | 12 | 36 | 750 | 125 | 10 | 60 | 0.159 |
PH64D032 | 32 | 11 | 33 | 885 | 160 | 9 | 60 | 0.218 |
PH64D038 | 38 | 10 | 30 | 1110 | 19 | 9 | 30 | 0.233 |
PH64D051 | 50.5 | 8 | 24 | 1695 | 252 | 8 | 30 | 0.291 |
