PH70D 食品/化妆品/制药
PH70D 食品/化妆品/制药
颜色: 透明
温度:-30 °C+ 125 °C
应用:
可广泛应用于多种领域,如抽吸输送:食品、化妆品、保健品、护肤品、药品。如:葡萄酒、醋、酒精度高达96%的白酒饮料、果汁面霜、香皂、香料、染料:牛奶、鲜奶酪、酸奶及其他乳制品,同样适用于含有油、脂类的食品。
技术特性:

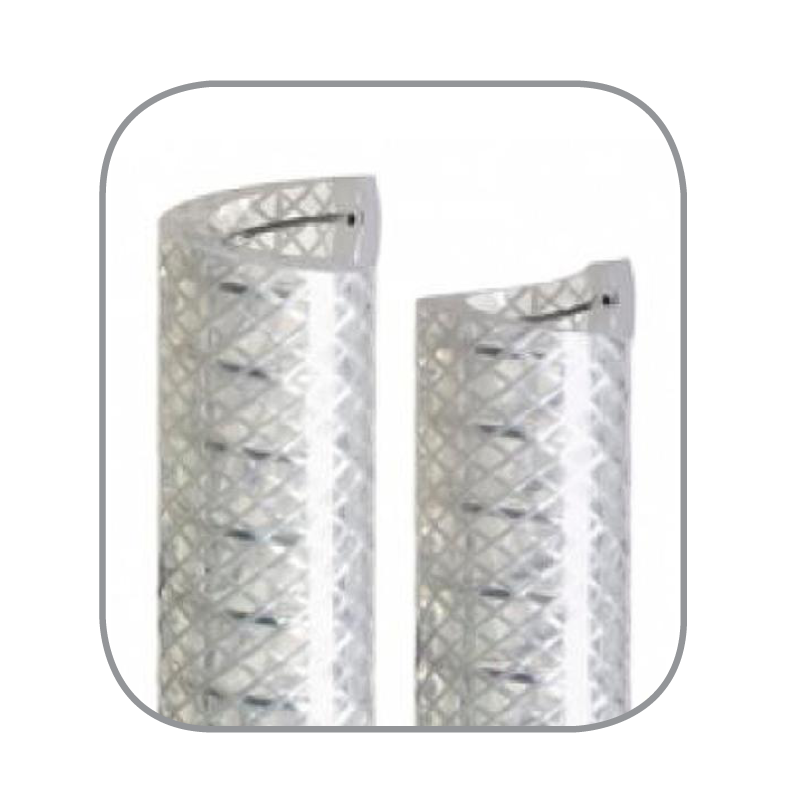

非常纯净、卫生的TPE材质、无硫化没有污染风险。管壁嵌入式不锈钢钢筋螺旋及高强度聚酯纤维网加强。内、外壁完全光滑,提高流量,降低阻塞的可能性,也便于清洁。低孔隙度,减少渗透问题,也保留了传输物质的原汁原味。
良好的耐化学品性能,耐酸、碱性溶液,抗水解,抗菌。不含邻苯二甲酸盐。不含卤素。标准:
符合EU Regulation n" 10/2011食品级标准,符合FDA(Title21 CFR 177.2600含水食品(e))标准,符合USPVI级药品级标准,符合TRBS2153规定,符合ROHS2011/65/EU指令,REACH Regulation ( 907/2006)标准。
Colour:Transparent
Temperature range :-30℃+125℃
Applications:
Versatile suction and delivery hose designed to convey food,cosmetic,health and body care,pharmaccutical substances:
premium wines,vinegar,spirits with alcoholic content up to 96%,beverages,fruit juices,creams,soaps,arom & essences,
pigments,milk,fresh cheese,yogurt,dairy products,also suitablefor foodstuff containing oils and fats.
Technical features :
Extremely pure and hygienic TPE,curing-free (no vulcanization
process,no risk of leaching),reinforced with an embedded stainlessSteel spiral and a high tenacity polyester yarn.
Completely smooth inside and outside to enhance the flow,detect possible blockages and to allow easy cleaning process.Low porosity reduces permeation problems and preserves theOriginal taste and flavor of the media.
Good chemical resistance to acids,alkaline solutions,hydrolysis,and bacteria proliferation.Phthalates free.Halogens free.
Standards:
Food grade according to EU Regulation n0.10/2011,FDA(Title 21 CFR 177.2600).Compliant with pharmaceuticalstandards USP CLASS VI,TRB S 2153,RoHS 2011/65/EUDirective,REACH Regulation 1 90712006)
- 产品详情
代码 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 弯曲半径 | 真空 | 长度 | 体积 |
code | inside | outside diameter | working pressure | burst pressure | weight nominal | bending radius | vacuum | length | volume |
PH70D | (mm) | (mm) | (bar) | (bar) | (kg/m) | (mm) | (mH20) | (m) | (m3) |
PH70D013 | 13 | 23.5 | 17 | 51 | 310 | 65 | 10 | 60 | 0.050 |
PH70D020 | 20 | 32.0 | 13 | 39 | 495 | 100 | 10 | 60 | 0.127 |
PH70D025 | 25 | 37.5 | 12 | 36 | 635 | 125 | 10 | 60 | 0.159 |
PH70D032 | 32 | 44.0 | 11 | 33 | 750 | 160 | 9 | 60 | 0.218 |
PH70D038 | 38 | 51.0 | 10 | 30 | 940 | 190 | 9 | 30 | 0.233 |
PH70D051 | 50.5 | 65.0 | 8 | 24 | 1440 | 250 | 8 | 30 | 0.291 |
PH70D063 | 63 | 79.0 | 7 | 21 | 1920 | 315 | 8 | 30 | 0.379 |
PH70D076 | 76 | 91.0 | 6 | 18 | 2070 | 380 | 7 | 30 | 0.603 |
PH70D102 | 102 | 118.0 | 4 | 12 | 2980 | 510 | 7 | 20 | 0.801 |
