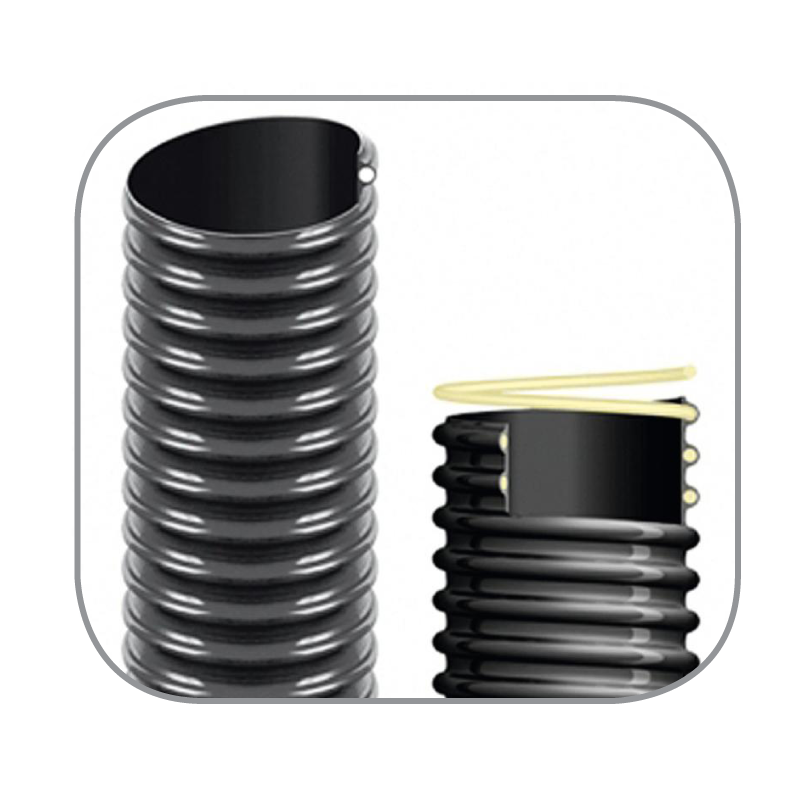

工程机械PH84F 空气/废气/蒸汽/其它气体
PH84F 空气/废气/蒸汽/其它气体
颜色: 深灰色
温度:-10 °C+ 50 °C
应用:
可应用于供暖、空调和通风系统中，用来抽吸空气，烟雾，各类气体，粉尘，锯末等;适用于真空清洗设备中。
技术特性:
增塑型的PVC软管，防震硬质PVC螺旋加强。壁厚范围:0 8毫米至12毫米内壁完全光滑比E0软管更加柔软和轻质。机械性能卓越，轻质、柔软，弯曲半径小，耐磨损和扭转，耐候，抗老化，耐臭氧，抗紫外线，耐多种化学品。不含卤素。
标准:
符合Rc HS 2 011/ 5/EC指令, REA CH Regulati on(1907/2006)法规。
Colour: Dark grey
Temperature range:-10℃+50℃
Applications:
ldeal for suction air,fumes,gasesu in heating,airconditioning and ventilation systems.Suitable to be installed onvacuum cleaning equipment.
Technical features:
Plasticized PVC hose reinforced by an anti-shock rigid PVC spiral.Wall thickness from O.8to 1.2mm.
Completely smooth inside.More flexible and lighter than (EO) Eolo.High mechanical properties: ight and flexible small bending radius,resistant to wear and torsion,weather conditions,ageing.ozone,Rays, ageing and most chemicals.Halogens free.
Standards:
RoHS 2011/65/EC Direcive,REaCH Regulation 1907/2006).
- 产品详情
| 代码 | 内径 | 最小壁厚 | 最大壁厚 | 重量 | 弯曲半径 | 真空 | 长度 | 体积 |
| code | inside | min wall thickness | max wall thickness | weight nominal | bending radius | vacuum | length | volume |
| PH84F | (mm) | (mm) | (mm) | (kg/m) | (mm) | (mH20) | (m) | (m3) |
| PH84F025 | 25 | 0.8 | 2.5 | 150 | 30 | 2.5 | 50 | 0.072 |
| PH84F030 | 30 | 0.8 | 2.6 | 190 | 35 | 2.5 | 50 | 0.102 |
| PH84F032 | 31.8 | 0.8 | 2.8 | 200 | 35 | 2.0 | 50 | 1.108 |
| PH84F035 | 35 | 0.8 | 2.9 | 225 | 35 | 2.0 | 50 | 0.137 |
| PH84F038 | 38.1 | 0.8 | 3.0 | 250 | 45 | 2.0 | 50 | 0.163 |
| PH84F040 | 40 | 0.8 | 3.0 | 270 | 50 | 2.0 | 50 | 0.178 |
| PH84F045 | 45 | 0.8 | 3.1 | 340 | 55 | 2.0 | 50 | 0.207 |
| PH84F050 | 50 | 0.8 | 3.5 | 415 | 60 | 2.0 | 50 | 0.263 |
| PH84F051 | 50.8 | 0.8 | 3.5 | 415 | 60 | 2.0 | 50 | 0.266 |
| PH84F060 | 60 | 0.8 | 3.6 | 485 | 70 | 1.6 | 50 | 0.361 |
| PH84F064 | 63.5 | 0.8 | 3.6 | 505 | 70 | 1.6 | 50 | 0.380 |
| PH84F070 | 70 | 0.9 | 3.8 | 560 | 90 | 1.5 | 50 | 0.541 |
| PH84F076 | 76.2 | 0.9 | 3.8 | 615 | 100 | 1.5 | 50 | 0.620 |
| PH84F080 | 80 | 0.9 | 4.3 | 725 | 110 | 1.5 | 30 | 0.655 |
| PH84F090 | 90 | 0.9 | 4.5 | 825 | 125 | 1.4 | 30 | 0.442 |
| PH84F100 | 100 | 0.9 | 4.6 | 940 | 140 | 1.3 | 30 | 0.642 |
| PH84F102 | 102 | 0.9 | 4.6 | 940 | 140 | 1.3 | 30 | 0.654 |
| PH84F110 | 110 | 1.0 | 5.0 | 1065 | 150 | 1.2 | 30 | 0.746 |
| PH84F120 | 120 | 1.0 | 5.0 | 1165 | 160 | 1.0 | 30 | 0.831 |
| PH84F127 | 127 | 1.0 | 5.0 | 1230 | 170 | 1.0 | 30 | 0.900 |
| PH84F130 | 130 | 1.0 | 5.0 | 1260 | 170 | 0.9 | 30 | 0.945 |
| PH84F140 | 140 | 1.0 | 5.1 | 1405 | 175 | 0.9 | 30 | 1.041 |
| PH84F152 | 151.5 | 1.1 | 5.2 | 1550 | 180 | 0.8 | 20 | 0.952 |
| PH84F152 | 152.4 | 1.1 | 5.3 | 1545 | 180 | 0.8 | 20 | 0.958 |
| PH84F160 | 160 | 1.1 | 6.0 | 1725 | 190 | 0.7 | 20 | 1.040 |
| PH84F180 | 180 | 1.1 | 6.0 | 1940 | 300 | 0.4 | 20 | 1.228 |
| PH84F200 | 200 | 1.1 | 6.0 | 2135 | 400 | 0.4 | 20 | 1.431 |
| PH84F250 | 250 | 1.2 | 6.8 | 3210 | 450 | 0.4 | 10 | 0.947 |
| PH84F300 | 300 | 1.2 | 6.9 | 3895 | 1000 | 0.3 | 10 | 1.450 |
