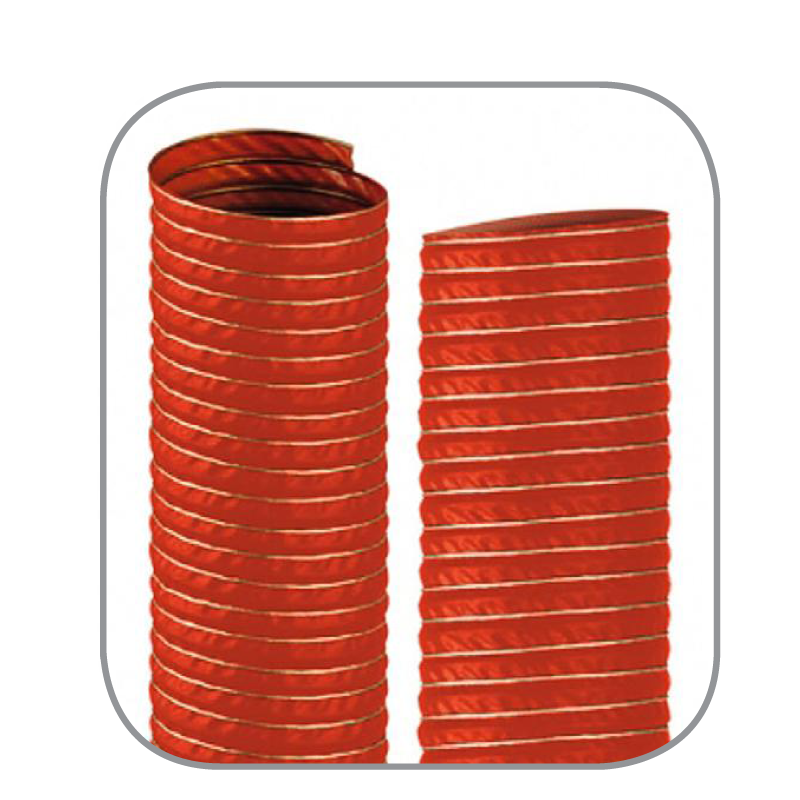

PH94F 空气/废气/蒸汽/其它气体
PH94F 空气/废气/蒸汽/其它气体
颜色:红色
温度:-60℃ + 270 ℃ (是高300 ℃ )
应用:
可广泛应用于工业领域,如汽车制造业,化工、塑料 和印刷业.用来抽吸废气,干燥颗粒等。
技术特性:
玻璃纤维织物内层,单层硅胶涂层,内嵌镀铜钢丝螺旋,外单玻璃纤维绳加强。
轻质.极度柔软,防扭结,弯曲性好,内壁几乎完全平 滑,耐多数化学品及高温。
不含卤素 标准长度:4米
标准:
符合ROHS 20 165/C指令,REACH Regulation (1907 /2006)法规。
Colour:Red
Temperature range :-60 °C+ 270 °C(peak 300 °C)
Applications:
Suitable for many industrial applications: suction of exhaust gases in automotive,chemical,plastic industries,drying granules^printing paper.
Technical features:
One ply of silicone coated glass fabric,With an inside visible bronze plated steel wire helix.Single outer glass cord.
Lightweight,highly flexible kink proof,very good in bending,nearly smooth inside,good resistance to most chemicals and high tem¬peratures.
Halogens free.
Standard Length: 4metres.
Standards:
RoHS 2011/65/EC Directive .REACH Regulation (1907/2006)
- 产品详情
产品型号 | 内径 | 工作压力 | 重量 | 弯曲半径 | 真空 | 长度 | |
code | inside diameter | working pressure (bar) | weight nominal | bending radius | vacuum | length | |
PH94F | (mm) | (bar) | (g/m) | (mm) | (mH20) | (m) | |
PH94F025 | 25 | 25 | 1.4 | 120 | 12 | 5. 3 | 4 |
PH94F032 | 32 | 32 | 1.4 | 130 | 16 | 5. 0 | 4 |
PH94F038 | 38 | 38 | 1.4 | 165 | 19 | 5. 0 | 4 |
PH94F041 | 41 | 41 | 1.3 | 177 | 21 | 4. 5 | 4 |
PH94F051 | 51 | 51 | 1.2 | 250 | 25 | 4. 4 | 4 |
PH94F063 | 63 | 63 | 1. 1 | 300 | 31 | 4. 0 | 4 |
PH94F070 | 70 | 70 | 1. 1 | 395 | 35 | 3. 5 | 4 |
PH94F083 | 83 | 83 | 1 | 470 | 41 | 3. 0 | 4 |
PH94F089 | 89 | 89 | 0. 9 | 495 | 44 | 2. 9 | 4 |
PH94F0102 | 102 | 102 | 0. 9 | 570 | 51 | 2. 6 | 4 |
PH94F0121 | 121 | 121 | 0. 8 | 760 | 60 | 1.9 | 4 |
PH94F0127 | 127 | 127 | 0. 8 | 805 | 63 | 1.7 | 4 |
PH94F0152 | 152 | 152 | 0. 6 | 1050 | 76 | 1.4 | 4 |
PH94F0160 | 160 | 160 | 0. 6 | 1090 | 80 | 1.2 | 4 |
PH94F0178 | 178 | 178 | 0. 6 | 1210 | 89 | 10 | 4 |
PH94F0203 | 203 | 203 | 0. 5 | 1380 | 101 | 0. 7 | 4 |
PH94F-0254 | 254 | 254 | 0. 4 | 1650 | 127 | 0. 5 | 4 |
PH94F-0305 | 305 | 305 | 0.1 | 2000 | 152 | 0. 3 | 4 |
