工程机械PLH02 光滑特氟龙单管

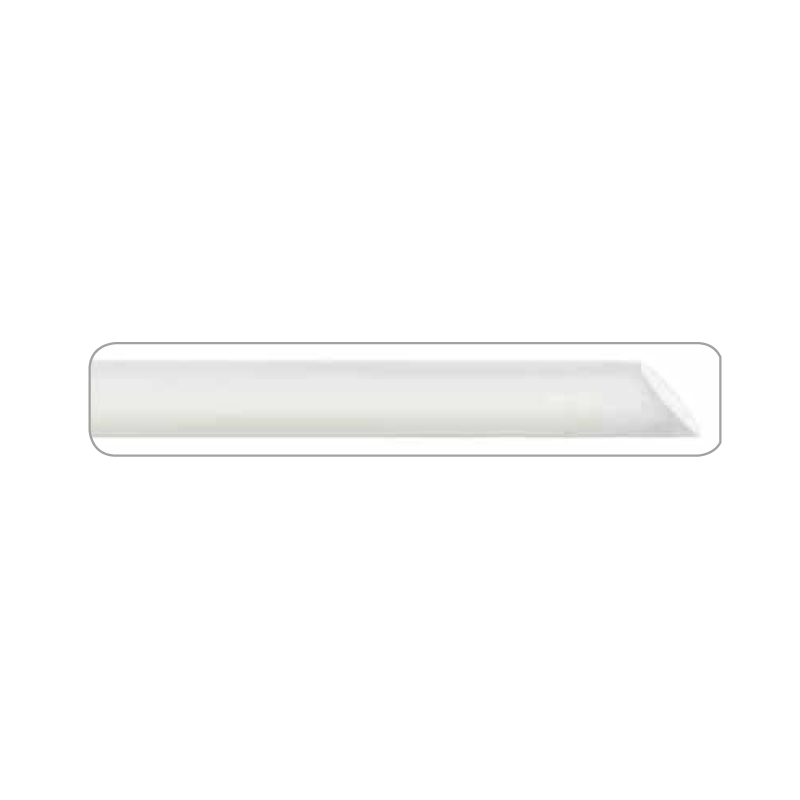

PLH02 光滑特氟龙单管
适用标准及认证：
FDA,USP
描述：PTFE单管，坚固、灵活及髙透明性使得该软管成为了众多行业 的第一选择，如：气动行业，食品行业，化学行业等
工作温度：-70°C至+260°C
可选项：标准与防静电内衬可供选择
Standard/Approval:
FDA, USP
Deion: robust and flexible offering the legendary benefits of genuine PTFE makes this the NO.1 selection for pneumatic, food, chemical, beverage and an almost endless list of applications
Temperature: -70°C to +260°C
Also available upon request: Virgin and anti-static tubing available upon request
- 产品详情
| 产品型号 | 内径 | 外径 | 壁厚 | 工作压力 | 爆破压力 | 长度 | ||
| code | inside diameter | outside diameter | wall thickness | working pressure | burst pressure | length | ||
| PLH02 | (min) | (max) | (min) | (max) | (mm) | (bar) | (bar) | (m) |
| PLH02001 | 1 | 1.2 | 3 | 3.15 | 1 | 30 | 90 | 100 |
| PLH02002 | 2 | 2.2 | 4 | 4.15 | 1 | 23 | 69 | 100 |
| PLH02003 | 3 | 3.2 | 5 | 5.15 | 1 | 18 | 54 | 100 |
| PLH02004 | 4 | 4.2 | 6 | 6.15 | 1 | 15 | 45 | 250 |
| PLH02005 | 5 | 5.25 | 7 | 7.15 | 1 | 13 | 39 | 225 |
| PLH02006 | 6 | 6.25 | 8 | 8.15 | 1 | 11 | 33 | 200 |
| PLH02008 | 8 | 8.3 | 10 | 10.15 | 1 | 9 | 27 | 150 |
| PLH02010 | 10 | 10.3 | 12 | 12.15 | 1 | 8 | 24 | 125 |
| PLH02012 | 12 | 12.35 | 14 | 14.15 | 1 | 7 | 21 | 100 |
| PLH02014 | 14 | 14.35 | 16 | 16.15 | 1 | 6 | 18 | 85 |
| PLH02016 | 16 | 16.4 | 18 | 18.15 | 1 | 5 | 15 | 75 |
| PLH02018 | 18 | 18.4 | 20 | 20.15 | 1 | 5 | 15 | 70 |
| PLH02020 | 20 | 20.4 | 22 | 22.2 | 1 | 4 | 12 | 60 |
| PLH02022 | 22 | 22.5 | 25 | 25.2 | 1.5 | 6 | 18 | 35 |
| PLH02025 | 25 | 25.5 | 28 | 28.2 | 1.5 | 5 | 15 | 33 |
| PLH02026 | 26 | 26.5 | 28 | 28.2 | 1 | 3 | 9 | 20 |
| PLH02030 | 30 | 30.5 | 34 | 34.2 | 2 | 6 | 18 | 20 |
| PLH02032 | 32 | 32.5 | 36 | 36.2 | 2 | 5 | 15 | 20 |
| PLH02038 | 38 | 38.5 | 42 | 42.2 | 2 | 4 | 12 | 20 |
| PLH02040 | 40 | 40.5 | 44 | 44.2 | 2 | 4 | 12 | 20 |
| PLH02044 | 44 | 44.5 | 50 | 50.2 | 3 | 6 | 18 | 20 |
| PLH02048 | 48 | 48.5 | 52 | 52.2 | 2 | 4 | 12 | 20 |
| PLH02050 | 50 | 50.5 | 54 | 54.2 | 2 | 3 | 9 | 15 |
